How to get a roofing measurement

Climbing up on a house to calculate roof square footage can be time consuming. Measuring every area of a roof and then inputting the information into an estimate can set roofing contractors back hours each day, limiting your ability to reach more homeowners and sell more jobs.

This roofing measurement guide will walk you through easy ways to take manual measurements as well as how you can maximize your time by using aerial measurement reports.

How to manually measure a roof

To manually measure a roof without the help of aerial measurement reports, you must visit a job site and climb onto the roof to take precise roofing measurements by hand.

Here are the 6 steps to get a manual roofing measurement.

  1. Measure the width and length of each plane of the roof (including dormers), and then multiply those numbers to get the correct figure for the square footage of that area.
    Example: Plane 1 (A x B): 50’ x 20’ = 1000 sq ft
    Plane 2 (A x C): 50’ x 20’ = 1000 sq ft

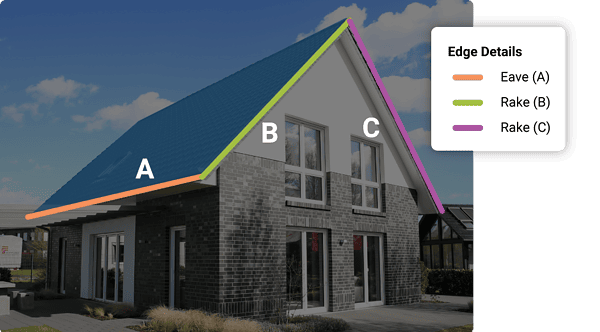

Diagram of roof planes to calculate square footage.
  1. Note any skylights, chimneys, or other parts of the roof that would not require materials. You can subtract those measurements from your total area.
  2. Add together the calculated square footage of each surface to get the figure for total square footage of the roof.
    Example: Plane 1 (1000 sq ft) + Plane 2 (1000 sq ft) = 2000 sq ft

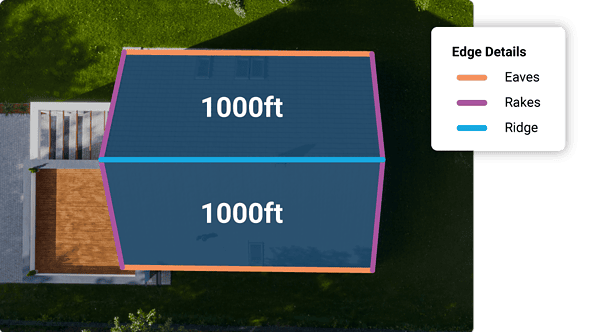

Diagram of roof planes to calculate square footage.
  1. After determining the total square footage of the roof, you must calculate the pitch of the roof. Measure the vertical distance (rise) over a 12 inch horizontal segment (run).
    Example: The rise of this roof is 5”.
  2. Write down these numbers as the vertical roof measurement listed first and the horizontal roof measurement recorded second so you can find rise over run.
    Example: The rise over run of this roof is 5” over 12”.
  3. When you have the total square footage and rise over run of the roof, you can calculate the roof squares to determine how much materials are needed to cover the roof. To calculate the number of squares on a roof, you need to divide its total square feet by 100.
    Example: 1000 sq ft / 100 = 10 squares

With those roofing measurement figures, you can then estimate the roofing supplies needed for a job.

Diagram to help define the terms rise, run, span, and pitch of slope.

Using aerial measurement reports

Save time with aerial roof measurement reports

Ordering an aerial measurement report is a much faster and convenient way to get the measurements of a roof. Instead of climbing on a ladder to measure a roof for shingles by hand and inputting measurements into an estimate for the homeowner, the entire process can be managed digitally, saving you time, allowing you to deliver roof estimates faster, and eliminating measurement errors.

A piece of paper with movement lines to the left and arrows pointing to the right. AccuLynx aerial measurements help you deliver estimates faster.

Deliver estimates faster

After a big storm, you want to be as prepared as possible for an influx of work. Customers are eager to have their homes repaired. The faster you can provide an estimate for roof repair, the faster work can get started. But even a simple roof can take at least 30 minutes to measure. Ordering a roofing measurement report through AccuLynx, on the other hand, takes only a few seconds, which means your field sales teams can provide estimates to more homes.

A warning triangle with a cancelling X on the lower right point. Roofing measurement reports eliminate manual errors.

Eliminate errors

Measuring a roof for shingles is an error-prone process that often results in miscalculations. Aerial measurement reports eliminate manual errors so you can be assured you have accurate numbers from the very start. Reduce material shortages and overages once and for all, resulting in money savings for your roofing business.

How aerial roofing measurements work

For a tool that can be so valuable to your company, aerial roof measurements are actually quite simple. Planes or drones capture images of residential and commercial properties from the sky. From these images, a report with accurate measurements of a roof’s area, length, and pitch is generated. Details typically include measurement of a roof’s ridges, hips, valleys, rakes, eaves, flashing, and step flashing.

EagleView Aerial Measurement Logo

Roofing measurements from EagleView

EagleView delivers measurements derived from high-resolution aerial imagery for residential and commercial structures. EagleView roof measurement products include georeferenced, high-resolution aerial imagery captured at low altitudes from a top-down perspective as well as views from the north, south, east, and west.

What’s included in an EagleView aerial measurement report:

  • High-resolution aerial images and a 3D diagram
  • Length, area, pitch, and other measurement data
  • Length diagrams showing color-coded details and total line lengths for ridges, hips, valleys, rakes, eaves, drip edges, flashing, step flashing, and parapet walls
  • Waste calculations
Logo for GAF

Roofing measurements from GAF QuickMeasure

GAF QuickMeasure reports provide accurate roof measurements and the latest high-resolution imagery in under 1 hour for single-family homes and under 24 hours for multi-family and commercial properties.

What’s included in a GAF QuickMeasure report:

  • High-resolution aerial images and an interactive 3D rendering
  • Length, area, pitch, and other measurement data
  • Length diagrams showing color-coded details and total line lengths for ridges, hips, valleys, rakes, eaves, drip edges, flashing, step flashing, and parapet walls
  • Waste calculations

Get detailed roof measurements using AccuLynx

AccuLynx integrates with aerial measurement providers – EagleView and GAF QuickMeasure – to simplify the roof measurement process for contractors.

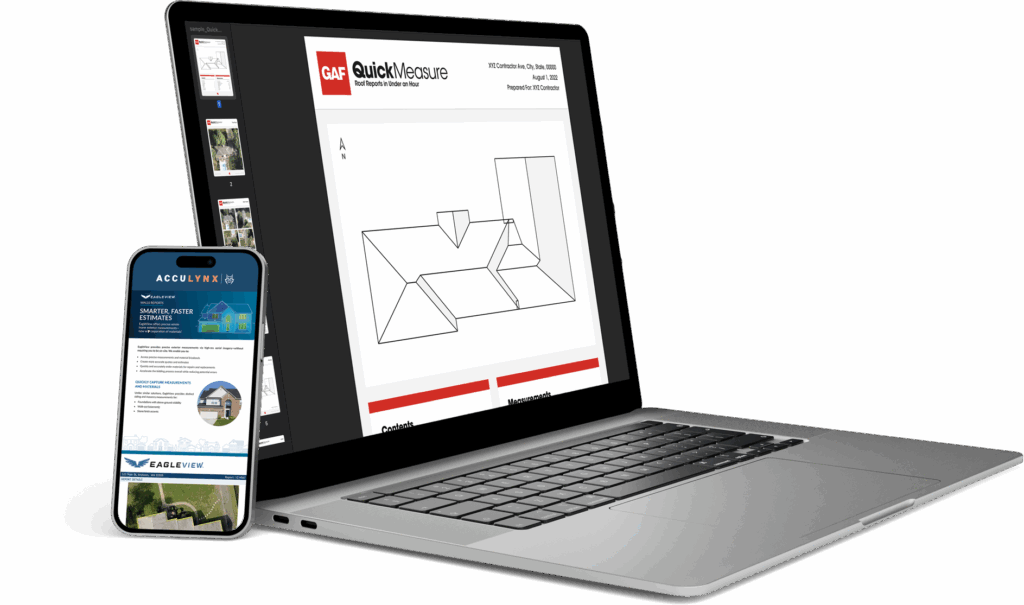

Laptop displaying a GAF QuickMeasure report, and a phone displaying an EagleView report. Displaying drone measuring software.

With our seamless integrations, you’ll get fast and accurate measurements right to your AccuLynx job file, so you can prepare competitive estimates, increase sales closing rates, and improve production planning.

Highlights:

  • Order reports on any property from EagleView or GAF QuickMeasure right from AccuLynx
  • Get your report automatically delivered back to your AccuLynx account and stored in the appropriate job record
  • Reports can auto-populate an estimate, eliminating the need to import files or manually enter measurements

How to order aerial measurement reports in AccuLynx

AccuLynx makes ordering aerial roofing measurement reports a fast and straightforward process.

Before you can order an EagleView roof measurement, you’ll need to set up the connection. Just follow these simple steps:

  1. From the main menu, navigate to “Account Settings”.
  2. Go to the Add-Ons Features and Integrations page; select “EagleView” and click the “Enable” button.
  3. Enter your company’s EagleView account credentials and click, “Validate Account”.
  4. After validating your account, you can choose which user types can place EagleView Orders.

Once you’ve enabled the integration, you can easily place orders following these steps:

  1. From the main dashboard, select “EagleView”. You can also navigate to the Measurements tab in one of your job files and select “Order Measurement”, then “Order EagleView”.
  2. Select the report details, such as the number of buildings or the type of roof.
  3. Add in any comments or notes about the order that you might have.
  4. Check to make sure the red map pin is in the right location.
  5. Submit your order.

The speed and ease of ordering aerial measurement reports through AccuLynx saves you time, eliminates the need for double data entry, and improves the accuracy of your estimates.

Before you can order a GAF QuickMeasure report, you’ll need to set up the connection. It’s only takes a few minutes and is easy to do:

  1. From the main menu, navigate to “Account Settings”.
  2. Go to the Add-Ons Features and Integrations page; select “GAF QuickMeasure” and click the “Enable” button.
  3. Enter your company’s GAF QuickMeasure account credentials and click, “Validate Account”.
  4. After validating your account, you can choose which user types can place GAF QuickMeasure Orders.

Once you’ve enabled the integration, you can easily place orders following these steps:

  1. From the main dashboard, select “GAF QuickMeasure”. You can also navigate to the Measurements tab in one of your job files and select “Order Measurement”, then “Order GAF QuickMeasure”.
  2. Enter the GAF QuickMeasure Type and Measurement Instructions.
  3. Add in any comments or notes about the order that you might have.
  4. Check to make sure the red map pin is in the right location.
  5. Submit your order.

The AccuLynx Field App gives you access to the measurement tools in AccuLynx right from your mobile device. Order and view aerial roof measurement reports—no matter where you are.

How aerial roofing measurement integrations in AccuLynx helped Kaiser Roofing grow profits

Before Kaiser Roofing started using EagleView and AccuLynx, Chief Operations Officer Dan Billings sometimes spent two or three hours preparing a single estimate. He knew that in order to scale the company and increase profits, Kaiser Roofing needed a better solution for measuring roofs, estimating jobs, and managing every aspect of the business.

Switching to AccuLynx and ordering EagleView reports through our integration meant that the Kaiser Roofing team no longer had to climb on roofs to get their measurements. Instead, they could see roofing reports in as little as 15 minutes and turn those reports into estimates with just a few clicks. Because of this increased efficiency, the sales team now has more time to focus on educating the customer and closing the deal. In addition, using AccuLynx helped Kaiser Roofing improve the accuracy of their estimates and know exactly what materials to order. The result? Substantial growth—including a 120% revenue increase in just one year!

Frequently asked questions

Aerial roof measurements are quite accurate. EagleView claims that their aerial roof measurements are 96% accurate and GAF QuickMeasure claims 95% accuracy. Both providers offer an accuracy guarantee.

Aerial roofing measurement costs vary by provider and project size. EagleView Premium reports start at $31. GAF QuickMeasure reports start at $18.

Yes, AccuLynx customers can use whatever aerial measurement provider they prefer. You can easily import the XML file into your AccuLynx estimate.

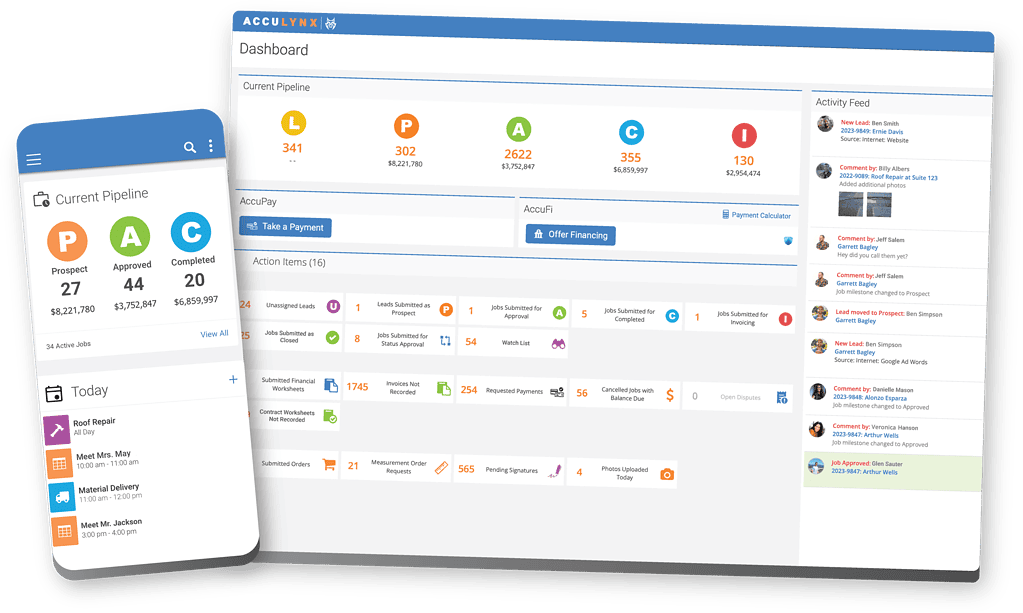

Complete roofing business management software with integrated aerial measurement ordering and more
